Beware that this venue data has not been confirmed for more than a year

Venuekeyboard_arrow_up

Venue or place nameLA Gaité Lyrique
CityPARIS
Postal code75003
Address3 bis Rue Papin
Google map link
Phone+33 1 53 01 52 00
Websitehttp://gaite-lyrique.net/

Technicians Contactskeyboard_arrow_down

Technical Director / Manager NameJean-Philippe Larue
Phone+33 (0)1 53 01 52 30
Emailjp.larue@gaite-lyrique.net
Stage Manager NameHugo SALLEZ
Light Technician NameCédric NATTÉ
Light Technician Name (2)Nicolas CONSTANT
Sound Technician NameJean-Marc HAREL
Sound Technician Name (2)Pierre LE CARDINAL
Names of other technical contactsKlervi GUERRERO assistante de Jean-Philippe Larue
Marc Mallia Régisseur général +33 (0)1 53 01 52 29

Accesskeyboard_arrow_down

Truck
Address / unloading dock info, freight elevator (size) (English)Access
08H – 20H / 70 RUE REAUMUR PARIS 3
20H – 08H / 3 BIS RUE PAPIN PARIS 3
Elevator size / width = 2m95, froof = 2m45, heigth = 2m48, 6 tonnes max
Bus Tour
Power plugs available for the bus:
Artists

Power Availablekeyboard_arrow_down

Electrical cabinet 1
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
Lumière
Connector Qty Phases Amp Diff Notes
CEE P17 125A 1 Tetra 125
Electrical cabinet 2
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
Son
Connector Qty Phases Amp Diff Notes
CEE P17 63A 1 Tetra 63

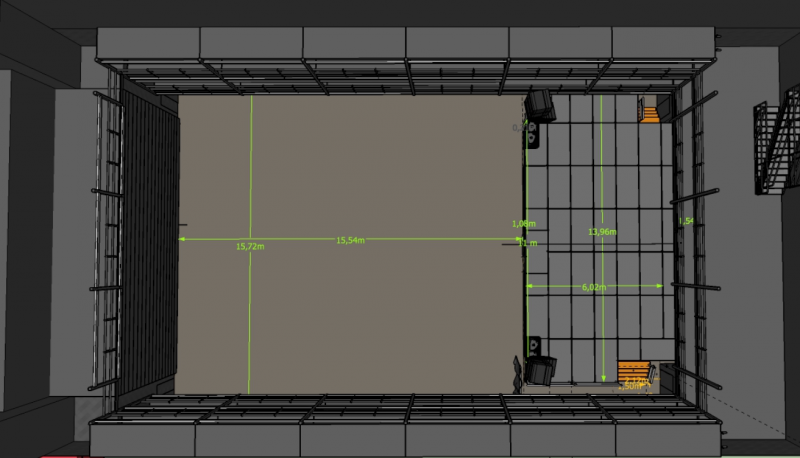

Room / Gaugeskeyboard_arrow_down

F15.54
G15.72
L0
Configurations
Configuration name Seating places Standing room PRM Total
Debout 760 760
Assis (gradins) 300 300

Stagekeyboard_arrow_down

Lwall to wall13.96
Lproscenium arch11
P6
D1

Soundkeyboard_arrow_down

Sound system availableyes
PA Sound System2 clusters chacun composé de :
7 M2 + 2X M2 SUB Amadeus Atelier 33
2 x stack (front) composé de :
4 x XS Amadeus Atelier 33
2 x PMX 12 (LIP) Amadeus Atelier 33
4 x ML18 (sub) Amadeus Atelier 33
1 x Ethersound bidirectional matrix AVM500 Auvitran
1 x Ethersound processor DME 80-ES Yamaha
1 x processor Lake LM26
Amplifications
Console PA and control1 x Console Eclipse Innovason avec 2 x FX cards
+ 10 in / out en local (8 mono ou 4 stereo FX)
Lecteur
1 x CD Player Tascam CD160 MKII (Dock Ipod)

1 x SPX2000 Yamaha
1 x PCM92 Lexicon
Monitor console and other1 x Eclipse Innovason Ethersound avec 20 out XLR en local
2 x FX cards
1 x Stage rack Diocore 48 in/8 out Innovason
Monitor Speakers8 x PMX15 wedge Amadeus
1 x PMX 12 wedge Amadeus (monitoring)
Microphones6 x Shure SM58 - 6 x Shure SM57
2 x Shure BETA 58 A - 3 x Sennheiser e904
4 x Sennheiser MD421 - 2 x Sennheiser e604
2 x Sennheiser e906 - 1 x AKG D112
1 x Shure Beta 52
DI
14 x BSS AR133
Statique
2 x Shure BETA 98/S - 1 x Shure BETA 91
3 x AKG 535 EB - 4 x AKG C451B
1 x Neumann km184 - 2 x DPA 4099G
Wireless
2 x SKM5200 / e935 Sennheiser
Other equipmentLieu équipé d’un limiteur en conformité avec la réglementation française NF S31-122
(Limite à 105 dBA).
La façade, les retours et le multipatch sont gérés
par le protocole Ethersound via du RJ45.
Merci de nous contacter dans le cas où vous
ramenez votre propre console.
Intercom
Clearcom System 2 x Master bases UHF
4 x Bases fixes filaires transmission/réception
4 x Mobile packs UHF transmission/réception

Lightkeyboard_arrow_down

Console1 x MA Lighting Grand MA 2 Light
Gradateurs
176 x Fixed dimmers 3 kW ADB Twintech
125 A TRI LOINTAIN JARDIN / CEE P17 PLUG
Other equipmentProtocole : La salle utilise le protocole Artnet. Si vous ramenez votre console lumière d'éclairage,
s'il vous plaît consultez le personnel technique afin de discuter des spécifications.
Plan de feu : Voir plan de feu type ci-dessous.
Rigging : Tous les ponts sont motorisés. Plus de détails sur demande.
Grill plot

Dressing room, Office, Cateringkeyboard_arrow_down

Dressing rooms
Number Note, position Size Shower WC Sink WiFi
1 1
2 1
3 1
4 ou bureau de prod 1
Production office
Catering
Notes, flight case size to access (English)no kitchen but catering
Dishwasherno
Sinkno
Extractorno
Grillno
Ovenno
How many plugs:
Utility room
If the room is empty:

Official Documents

Description Added
Dossier technique 2017-2018 2018-10-24
