Beware that this venue data has not been confirmed for more than a year

Venuekeyboard_arrow_up

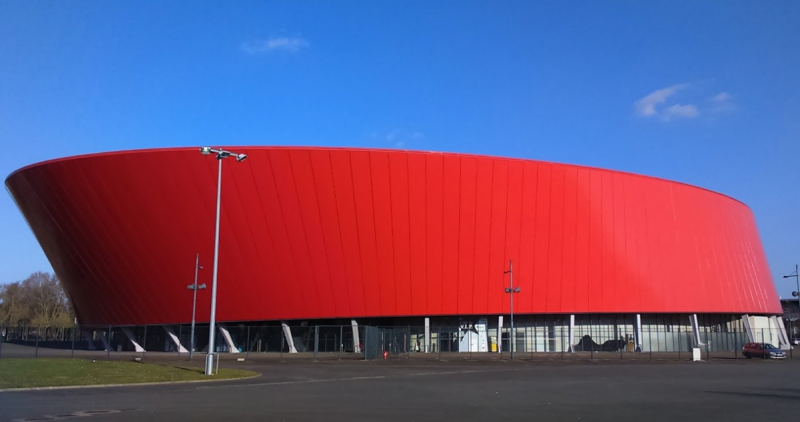

Venue or place nameZénith Amiens Métropole
CityAMIENS
Postal code80000
AddressAvenue de l’hippodrome
Google map link
Websitehttp://www.zenith-amiens.fr/

Technicians Contactskeyboard_arrow_down

Technical Director / Manager NameJames HEMERY
Emailnfo@zenith-amiens.fr

Accesskeyboard_arrow_down

Truck
Bus Tour
Power plugs available for the bus:
Artists

Power Availablekeyboard_arrow_down

Neutral schemeTN
Electrical cabinet 1
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
Son
Connector Qty Phases Amp Diff Notes
CEE P17 32A 1 Tetra 32
CEE P17 32A 3 Mono 32
Other 6 Mono 16 PCamp
Electrical cabinet 2
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
Lumière
Connector Qty Phases Amp Diff Notes
CEE P17 32A 3 Mono 32
Other 6 Mono 16 PC16
Electrical cabinet 3
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
Eclairage Scénique Left Back
Connector Qty Phases Amp Diff Notes
PowerLock 1 Tetra 660
Electrical cabinet 4
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
SON yes
Connector Qty Phases Amp Diff Notes
PowerLock 1 Tetra 400
CEE P17 125A 1 Tetra 125
CEE P17 32A 4 Tetra 32
6 Mono 16 PC16
Electrical cabinet 6
Sound/Light/Video/Accessory Name Number Total power Transformer Position (stage) Position Distance to stage
MACHINERIE
Connector Qty Phases Amp Diff Notes
CEE P17 125A 1 Tetra 125
CEE P17 63A 1
CEE P17 32A 1
CEE P17 16A 3

Room / Gaugeskeyboard_arrow_down

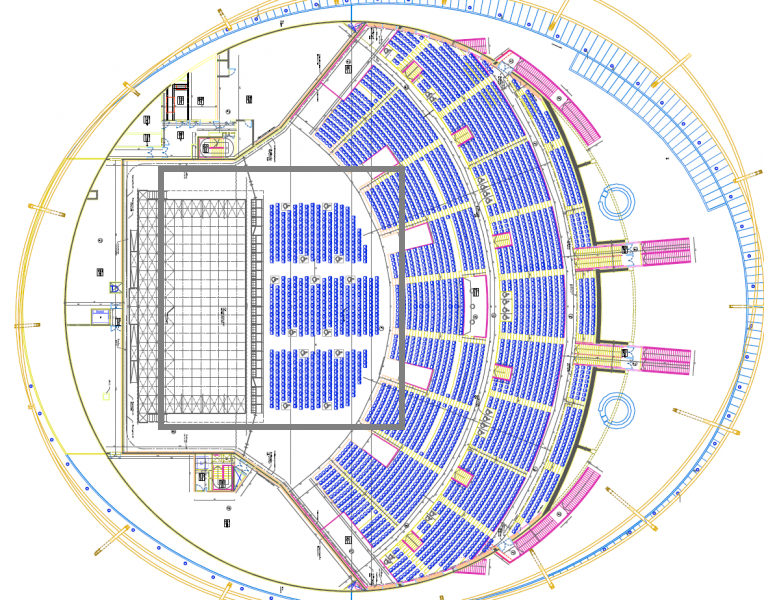

Configurations
Configuration name Seating places Standing room PRM Total
Assis /debout 5749
Tout Assis 4334

Stagekeyboard_arrow_down

Lproscenium arch29
P14
D1.8
Practicables20 praticables de scène (2mx1m) / résistance de 750/m2.
Pied de 0,40 m / 0,60 m / 0,80 m
Legs dropsRideau d’avant scène électrique :hauteur de 12,50m, ouverture
maximale de 33 m avec ampleur de 80 %.
(Commande en régie ou plateau avec réglage de vitesse)
• Rideau de fond sur patience manuelle en 2 parties : hauteur de
12,50 m, ouverture maximale de 33 m.
• 2 Rideaux d’occultation latéral jardin et cour de 12 m en hauteur x
5,60 m de large chacun
10 pendrillons de 12 m de haut sur 4 m de large.
o 5 frises de ciel de 3 m de haut sur 25 m.
OtherHauteur scène 1.20 à 1.8
Surface de l’espace régie : 8 m x 3 m
Commande de l’ouverture rideau d’avant scène.
Chariot élévateur
Charge maximum de 2 T 500 kg .Hauteur 4 m 50. Fonctionnement au gaz

Lightkeyboard_arrow_down

Grill plot

Dressing room, Office, Cateringkeyboard_arrow_down

Dressing rooms
Number Note, position Size Shower WC Sink WiFi
1 43 1 yes
2 20
1 Collective 32
2 Collective 21
3 Collective 32
4 Collective 17
5 Collective 26
Production office
Number Note, position Size WiFi Rj45 Direct line Furniture
1 Bureau Prod 18
2 Bureau Prod 19
Catering
How many places are available for the meals60
Notes, flight case size to access (English)espace prod tournée 87m²
Extractoryes
How many plugs:
Utility room
If the room is empty:
Size4

Official Documents

Description Added

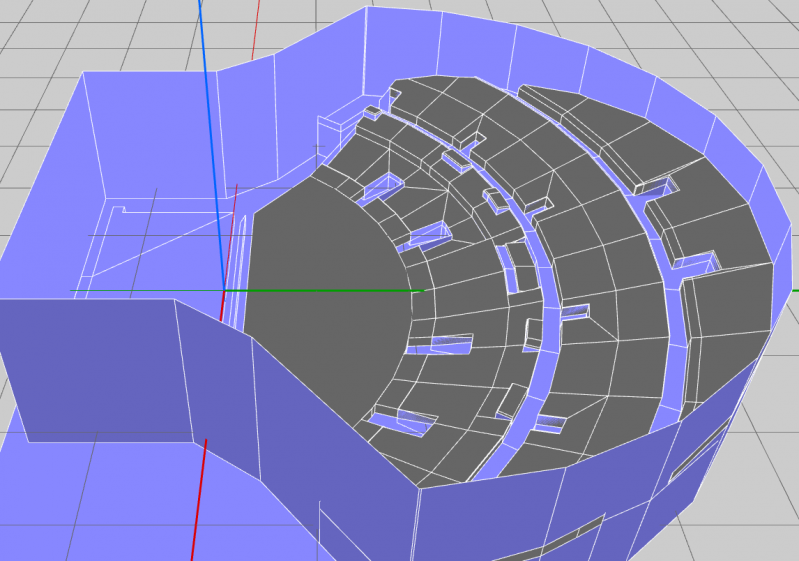

Officiel SoundVision 2019-10-09
